The E-Revox Tour Wave is a fully equipped e-mountain bike with perfectly integrated lights, fenders, kickstand and a rear carrier that is approved for child transportation in combination with a Thule Yepp 2 Maxi seat.
The E-Revox Tour Wave is a fully equipped e-mountain bike with perfectly integrated lights, fenders, kickstand and a rear carrier that is approved for child transportation in combination with a Thule Yepp 2 Maxi seat.
Bergamont

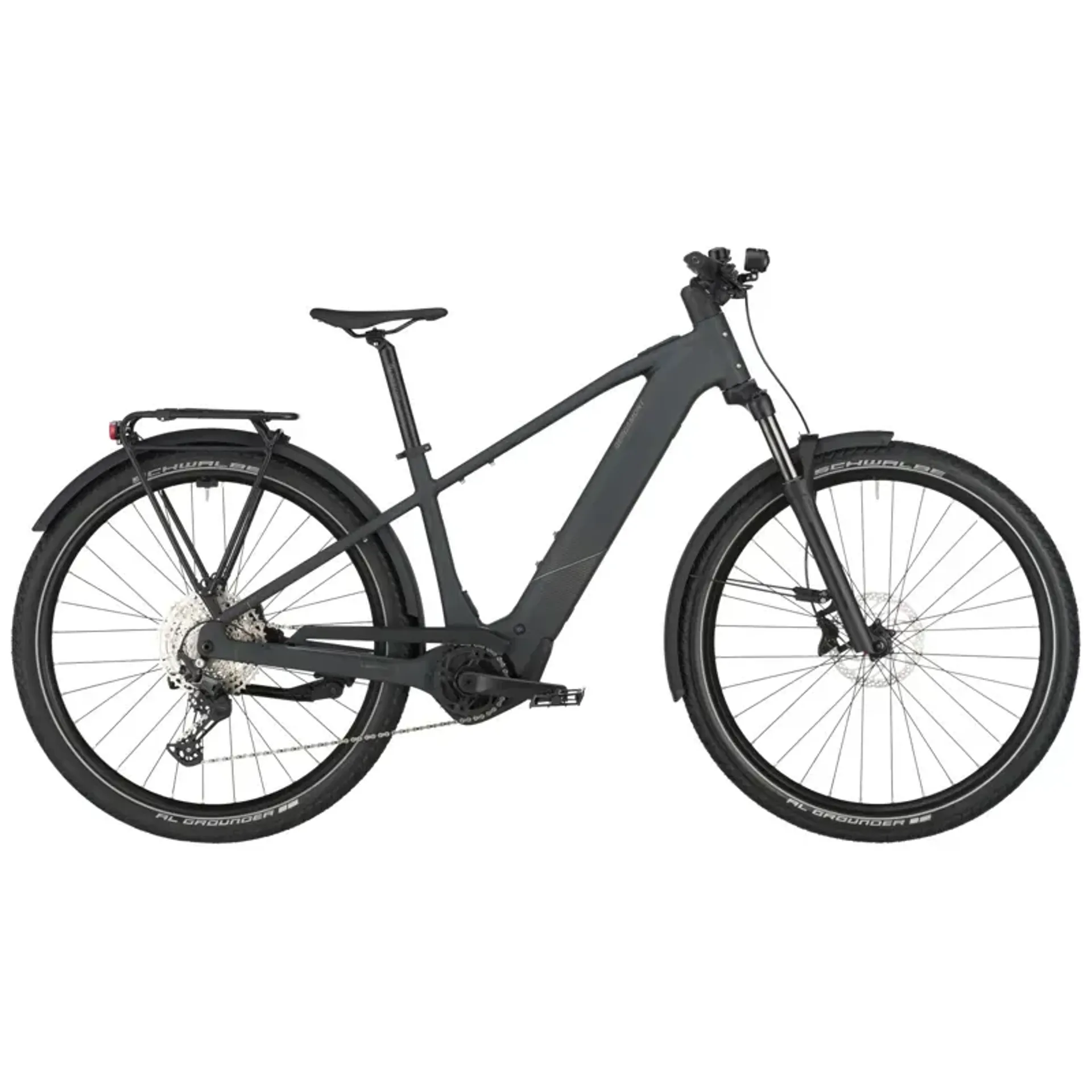

Bergamont E-Revox Tour 20 E-Bike in Flaky Black

£4,299.00
Size Guide
Bergamont E-Revox Tour 20 Wave E-Bike in Flaky Black
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Bergamont E-Revox Tour 20 E-Bike in Flaky Black

Season:2025

Brand:Bergamont

Code:423612flakyBLK

The E-Revox Tour Wave is a fully equipped e-mountain bike with perfectly integrated lights, fenders, kickstand and a rear carrier that is approved for child transportation in combination with a Thule Yepp 2 Maxi seat.

The low step-over height of the E-Revox Tour Wave not only caters perfectly to exactly this use case but makes getting on or off the bike much easier for anyone. The E-Revox Tour is the perfect bike for everyone liking the utilitarian look and offroad riding capabilities of a mountain bike but also benefits from a low step-over height and practical features for everyday use.
The Bosch Performance Line CX electric drive system offers powerful and long-lasting support, giving you the freedom to explore beyond your usual routes.

The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging, while the battery cover remains on the bike to protect the empty battery bay from the elements. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.

Features:

  • Super lightweight aluminum frame with low step-over height
  • Suntour suspension fork with 120 mm travel
  • Shimano Deore 1x12-speed drivetrain
  • Bosch Smart System with powerful Performance Line CX motor
  • Powerful Shimano hydraulic disc brakes
  • 29" Schwalbe Al Grounder tires
  • Child seat approved rear carrier, 160 kg max. system weight
  • LED lighting system front and rear with brake light function
Technical Information
  • Frame
    29", super lite AL-6061 tubing, PowerTube battery
  • Fork
    Suntour Mobie 34 DS, air, 120 mm, 15x110 mm axle
  • Fork-Suspension-Travel
    120
  • Derailleur
    Shimano Deore, RD-M6100, Shadow Plus
  • Shift-Levers
    Shimano Deore, SL-M6100, 1x12-speed, rapidfire plus-shifter
  • Number-Of-Gears
    12
  • Brake-Front
    Shimano BR-MT420, hydraulic disc brake, 4-piston
  • Brake-Rear
    Shimano BR-MT420, hydraulic disc brake, 4-piston
  • Brake-Lever-Front
    Shimano BL-MT4100, hydraulic disc brake
  • Brake-Lever-Rear
    Shimano BL-MT4100, hydraulic disc brake
  • Brake-Disc-Front
    Shimano SM-RT30, 180 mm
  • Brake-Disc-Rear
    Shimano SM-RT30, 180 mm
  • Rims
    Cross X18, disc, eyelets, width: 30 mm
  • Tire-Front
    Schwalbe Al Grounder, Performance, RaceGuard, reflective stripe, 60-622
  • Tire-Rear
    Schwalbe Al Grounder, Performance, RaceGuard, reflective stripe, 60-622
  • Hub-Front
    Shimano HB-TC500-B, centerlock, disc, 15x110 mm axle
  • Hub-Rear
    Shimano FH-TC500, centerlock, disc, 12x148 mm axle
  • Spokes
    Stainless, black
  • Handlebar
    Syncros 3.0 flatbar, backsweep: 10°, width: 680 mm
  • Handlebar-Width
    680
  • Handlebar-Rise
    10
  • Handlebar-Backsweep
    10
  • Stem
    Syncros, 7°
  • Stem-Length
    70
  • Stem-Angle
    7
  • Headset
    Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
  • Grips
    Syncros MTB Comfort, lock-on
  • Saddle
    Syncros Capilano Trekking Gel
  • Seat-Post
    Syncros M3.0
  • Crankset
    FSA CK-220, 165 mm, 34t
  • Bottom-Bracket
    Bosch, Isis
  • Drive
    KMC e12S
  • Sprocket
    Shimano Deore, CS-M6100, 10-51t
  • Pedals
    MTB alloy
  • Front-Light
    Litemove SEC 150, 150 Lux, LED
  • Rear-Light
    Axa Juno, LED, with brake light function
  • Rack
    Racktime / BGM, SnapIt 2.0 System
  • Mudguards
    Curana Orbit, with stainless stays
  • Stand
    Syncros U-mount
  • Motor
    Bosch Smart System, Performance Line CX (BDU384Y), 250 W, 36 V, max. 25 km/h
  • Battery
    Bosch PowerTube, 36 V Li Ion, 800 Wh
  • Battery-Capacity
    800
  • Number-Of-Batteries
    1
  • Display
    Bosch Kiox 300 with LED Remote
  • Charger
    Bosch Standard Charger, 4A
