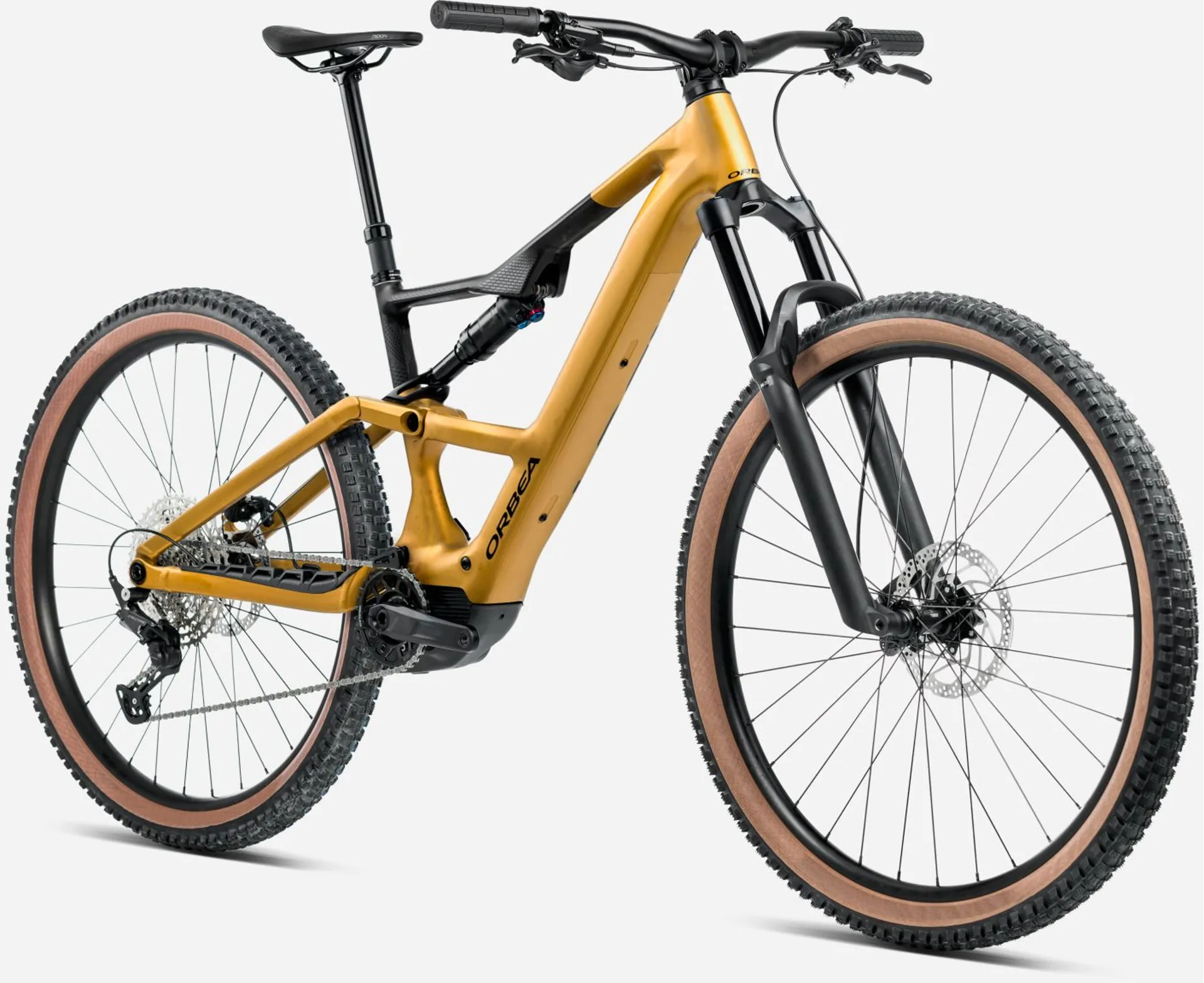

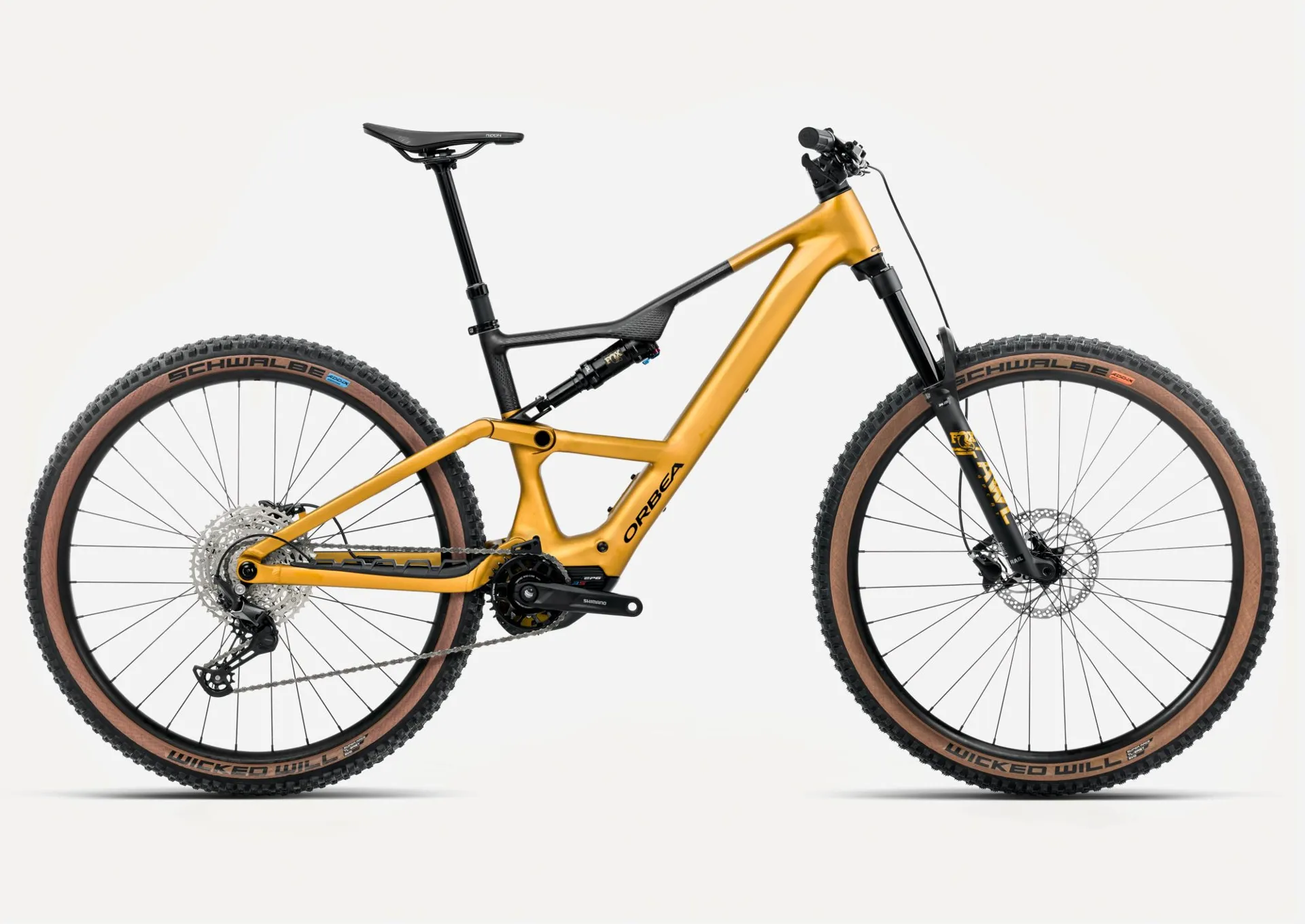

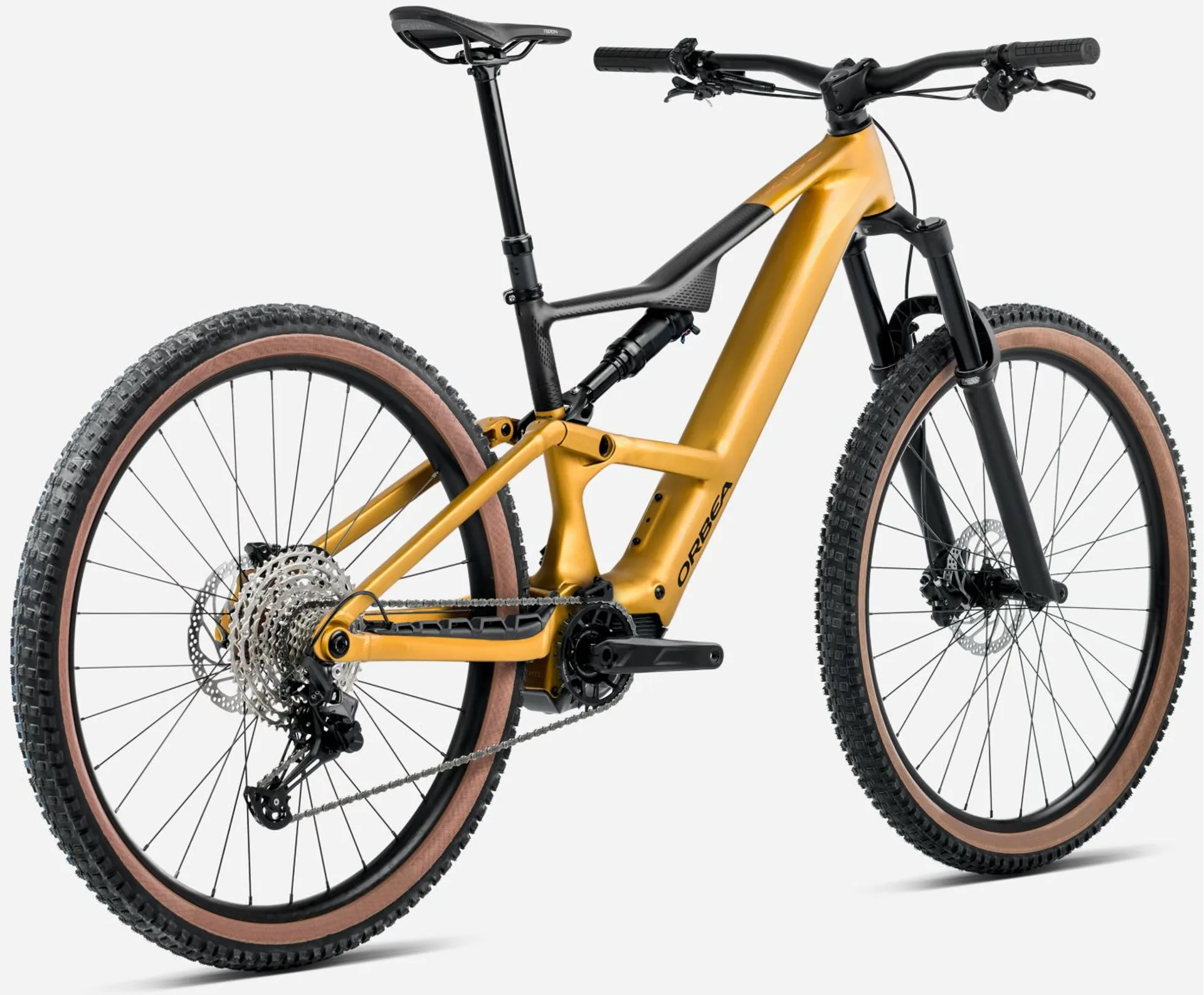

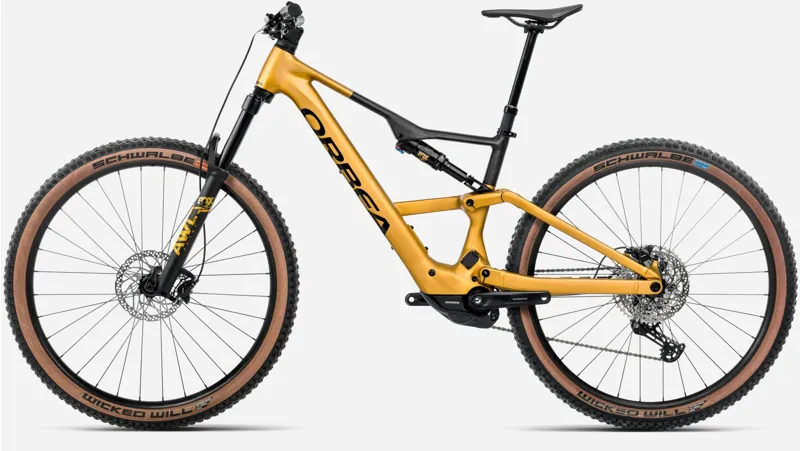

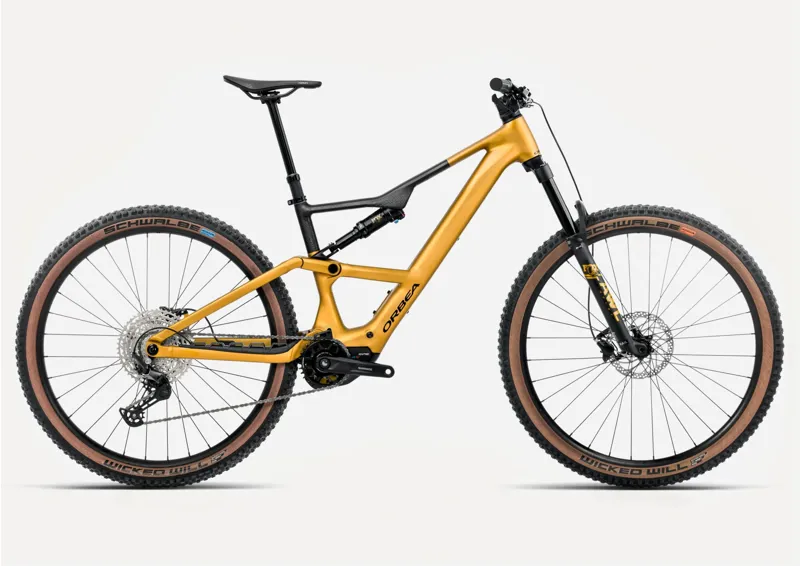

Orbea Rise SL H30 540Watt Mountain E-Bike

Season:2025

Brand:Orbea

Code:T319SS

Your best ride. That perfect trail. You feel connected to the dirt, pushing hard and in perfect control. These feelings are pure, and you live more brightly in these moments. Now, that experience just got better.

Less E, More Bike. Rediscover your trails! The new Rise H offers the same natural ride experience and features as Rise Carbon. Perfect synergy. Your bike works with you to turn every trail, feature, and corner into pure joy. Low weight and natural assistance mean lightning reflexes and fun handling that connect you to the trail.

Rise is ready to reshape the lightweight e-bike market once again. Leaner and keener than ever, with more energy packed into every gram.

All about the ride. Rise connects you to the trail. Rise rewrites the rulebook on ebike handling, floating, popping, manualling, and slicing through the corners as it disappears into the distance.

The sweet spot Stiff in the right places Bikes can be too stiff, or too flexible. High performance bikes need the correct rigidity, in the correct places.

Technical Information

Specs

Frameset

Frame
Orbea Rise SL Hydro 2025, 140mm travel, 29" wheels, Concentric Boost 12x148

Shock
Fox Float Performance 2-Pos Evol LV custom tune 210x50mm

Fork
Fox 34 Float AWL Sport 140 Rail QR15x110

Steerer tube
Alloy 1-1/2", Black Oxidated Bearing

Ebike

Battery
Orbea Internal 540Wh (Optional 252 Wh Range Extender)

RANGE EXTENDER
N/A

Motor
Shimano EP600 RS Gen2 MC

Display
N/A

CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote
EN600-L

Drivetrain

Chainring
e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine

Crank
Shimano Steps EM600

Shifters
Shimano Deore M6100

Cassette
Shimano CS-M6100 10-51t 12-Speed

Rear derailleur
Shimano Deore M6100 SGS Shadow Plus

Chain
Shimano M6100

Chainguide
Orbea eBike chainguide

Cockpit

Handlebar
OC Mountain Control MC31, Rise20, Width 800

Stem
OC Mountain

Control MC20, 0º

Computer Mount
OC Computer Mount CM-05, Garmin/Sigma

Brakes

Brakes
Shimano MT201 Hydraulic Disc

Brakes Configuration
N/A

Wheels

Wheels
Alloy, Tubeless, 29", 29c, 32H

Tyres
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown

Components

Seatpost
OC Mountain Control MC22, 31.6mm, Dropper

Seatpost Lever
Shimano SL-MT500

Saddle
Fizik Terra Ridon X5 145mm

Grips
OC Lock On

Accessories

Lights
N/A

Tools
N/A

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
