The E-Horizon SUV is a fully equipped e-trekking bike with perfectly integrated components.
The E-Horizon SUV is a fully equipped e-trekking bike with perfectly integrated components.
Bergamont

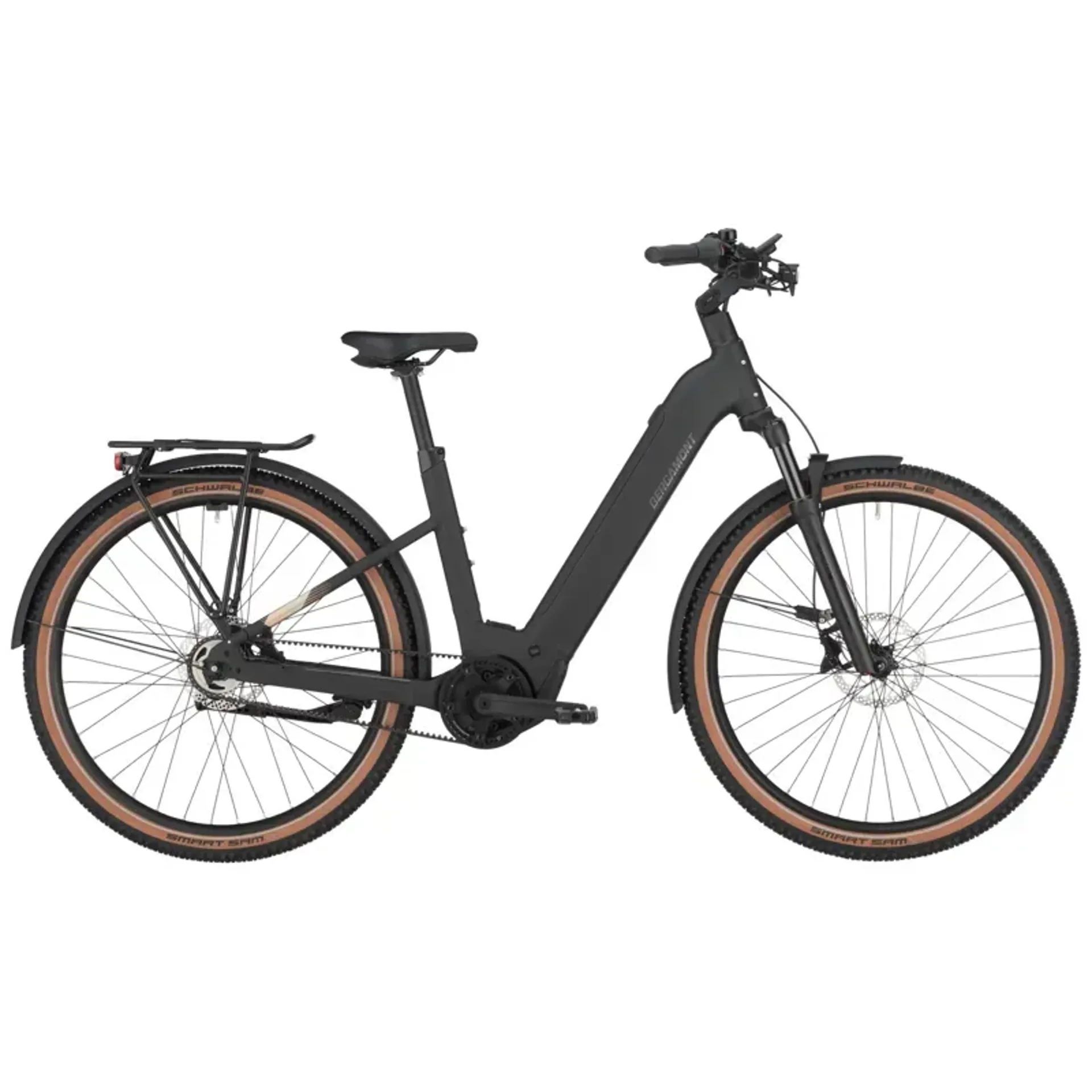

Bergamont E-Horizon SUV 20 Belt Wave E-MTB in Black Matte

£4,199.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Bergamont E-Horizon SUV 20 Belt Wave E-MTB in Black Matte

Season:2025

Brand:Bergamont

Code:423642BLK

The E-Horizon SUV is a fully equipped e-trekking bike with perfectly integrated components.

It includes features such as LED lights with a rear brake light function that increase rider safety in urban environments. The rear carrier is approved for 27 kg and child transportation in combination with a Thule Yepp 2 Maxi seat. The wide off-road tires add grip on lose surfaces and ensure a comfortable ride even on unpaved roads.

The Bosch Performance Line CX electric drive system offers powerful and long-lasting support, giving you the freedom to explore beyond your usual routes.

The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging, while the battery cover remains on the bike to protect the empty battery bay from the elements. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.

Features:

  • Super lightweight aluminum frame
  • Suntour suspension fork with 100 mm travel
  • Shimano Nexus 5-speed internal gear hub and low-maintenance belt drive
  • Bosch Smart System with powerful Performance Line CX motor
  • Powerful Shimano hydraulic disc brakes
  • 28" Schwalbe Smart Sam tires
  • Child seat approved rear carrier, 160 kg max. system weight
  • LED lighting system front and rear with brake light function
Technical Information
  • Frame
    28", Super Lite AL-6061 Tubing, PowerTube Battery
  • Fork
    Suntour Mobie 34 Air, 100 mm, 15x110 mm Axle
  • Fork-Suspension-Travel
    100 mm
  • Derailleur
    Shimano Nexus, SL-C7000, 5-speed, Revo-Shifter
  • Number-Of-Gears
    5
  • Brake-Front
    Shimano BR-MT420, Hydraulic Disc Brake, 4-Piston
  • Brake-Rear
    Shimano BR-MT420, Hydraulic Disc Brake, 4-Piston
  • Brake-Lever-Front
    Shimano BL-MT402, Hydraulic Disc Brake
  • Brake-Lever-Rear
    Shimano BL-MT402, Hydraulic Disc Brake
  • Brake-Disc-Front
    Shimano SM-RT30, 180 mm
  • Brake-Disc-Rear
    Shimano SM-RT30, 180 mm
  • Rims
    Cross X18, Disc, Eyelets, Width: 30 mm
  • Tire-Front
    Schwalbe Smart Sam, Performance, Addix, Reflective Stripe, 57-622
  • Tire-Rear
    Schwalbe Smart Sam, Performance, Addix, Reflective Stripe, 57-622
  • Hub-Front
    Shimano HB-TC500-B, Centerlock, Disc, 15x110 mm Axle
  • Hub-Rear
    Shimano Nexus, SG-C7000-5, Freehub, Centerlock, Disc
  • Spokes
    Stainless, Black
  • Handlebar
    Syncros 3.0, Riserbar, Backsweep: 15°, Rise: 12 mm
  • Handlebar-Width
    680 mm
  • Handlebar-Rise
    15 mm
  • Handlebar-Backsweep
    15°
  • Stem
    Satori Python, Adjustable
  • Stem-Length
    90 mm
  • Headset
    Acros, A-Headset, Semi-Integrated, Tapered, With Integrated Cable Routing
  • Grips
    Syncros Urban, Ergo, Double Density, Lock-On
  • Saddle
    Syncros Capilano Trekking
  • Seat-Post
    BGM Pro
  • Crankset
    FSA CK-320, 170 mm, Belt, 46t
  • Bottom-Bracket
    Bosch, ISIS
  • Drive
    Gates CDX Carbon Drive Belt, Center-Track
  • Sprocket
    Gates CDX, 32t
  • Pedals
    Marwi SP-823
  • Front-Light
    Trelock LS890-T, 100 Lux, LED
  • Rear-Light
    Axa Juno, LED, With Brake Light Function
  • Rack
    Racktime / BGM Trekking Pro, Snapit 2.0 System
  • Mudguards
    Curana Orbit, With Stainless Stays
  • Stand
    Syncros U-Mount
  • Motor
    Bosch Smart System, Performance Line CX (BDU384Y), 250 W, 36 V, Max. 25 km/h
  • Battery
    Bosch PowerTube, 36 V Li Ion, 600 Wh
  • Battery-Capacity
    600 Wh
  • Number-Of-Batteries
    1
  • Display
    Bosch Intuvia 100 With LED Remote
  • Charger
    Bosch Standard Charger, 4A
