The DSX 1 is a flat bar gravel bike featuring a Series 3 aluminium frame and carbon fibre fork. It offers mountain bike sensibilities with a 1x drivetrain, hydraulic disc brakes, and comfortable, heads-up positioning for all-day riding.
The DSX 1 is a flat bar gravel bike featuring a Series 3 aluminium frame and carbon fibre fork. It offers mountain bike sensibilities with a 1x drivetrain, hydraulic disc brakes, and comfortable, heads-up positioning for all-day riding.
Marin

Marin DSX 1 in Green

£899.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

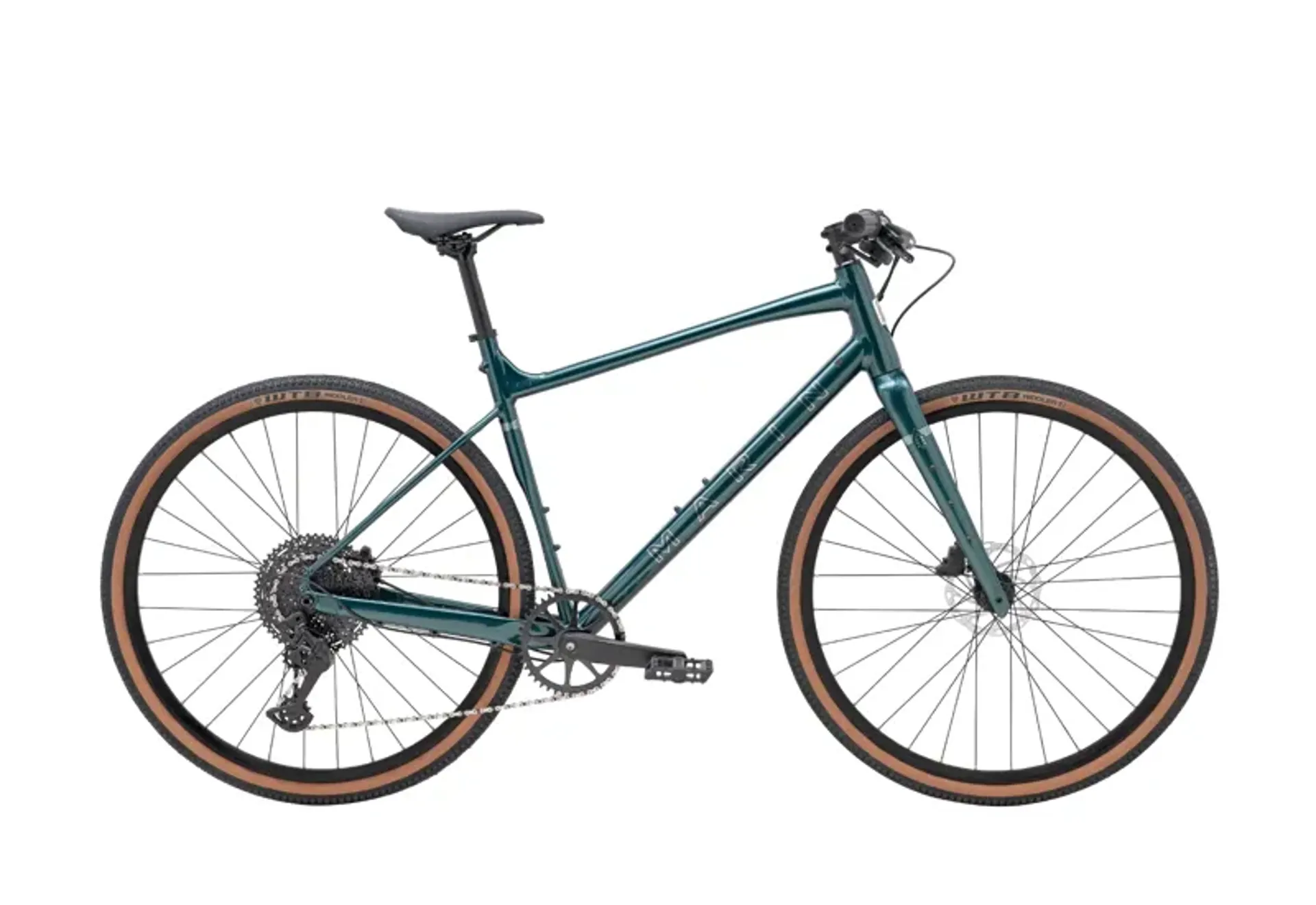

Marin DSX 1 in Green

Season:2026

Brand:Marin

Code:7406920GRN

The DSX is a flat bar gravel bike based on the Gestalt X drop bar platform, offering mountain bike sensibilities in a flat bar package.

The DSX 1 features a Series 3 aluminium frame and a carbon fibre fork, making it lighter and slightly stiffer than the base model. It is designed with large tyre clearance, low standover, hydraulic disc brakes, and a 1x drivetrain, providing the comfort and heads-up positioning of a flat handlebar. This bike is capable of fast commutes, long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.

The bike is equipped with a 10-speed 1X Shimano CUES drivetrain, WTB Riddler tyres, Tektro hydraulic brakes, and reliable Marin components.

Features:

  • Series 3 aluminium frame
  • Carbon fibre fork
  • 10-speed 1X Shimano CUES drivetrain
  • WTB Riddler tyres
  • Tektro hydraulic brakes
  • Dropper post compatible
Technical Information
  • Fork
    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
  • Frame
    Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
  • Rim
    Marin Aluminum Double Wall, 21mm Inner, Disc Specific
  • Hub Rear
    Forged Aluminum Alloy, 142x12mm, Disc Specific, 32H
  • Hub Front
    Forged Aluminum, 100x12mm, Disc Specific, 32H
  • Spokes
    14g Black Stainless Steel
  • Tires
    WTB Riddler, 700Cx45mm
  • Derailleur Rear
    Shimano CUES U6000GS, w/Clutch
  • Shift Lever
    Shimano CUES 10-speed
  • Crankset
    Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 42T Chainring
  • Bottom Bracket
    External Sealed Cartridge Bearings
  • Chain
    KMC LG
  • Cassette
    Shimano CUES CSLG300, 10-Speed, 11-48T
  • Brakes Front
    Tektro HD-R285 Flat Mount Hydraulic, 160mm Rotor
  • Brakes Rear
    Tektro HD-R285 Flat Mount Hydraulic, 160mm Rotor
  • Brake Levers
    Tektro Hydraulic
  • Handlebar
    Marin MiniRiser
  • Stem
    Marin 3D Forged Alloy
  • Grips
    Marin MTB
  • Headset
    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • Seatpost
    Marin Alloy
  • Saddle
    Marin DSX
  • Pedals
    Nylon Platform
  • Compatibility
    Dropper post compatible
