Orbea

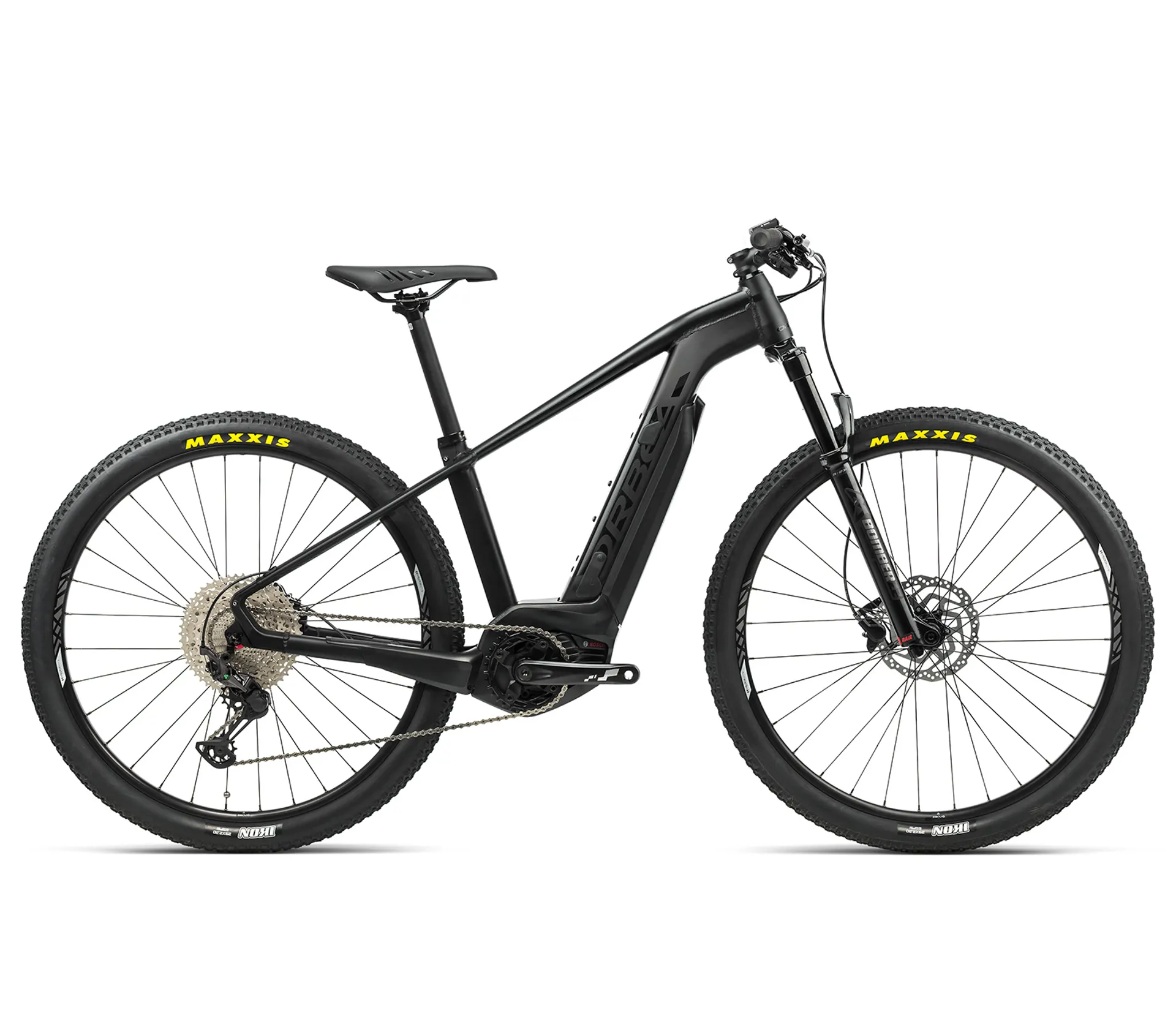

KERAM MAX 27

£2,799.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

KERAM MAX 27

Season:2021

Brand:Orbea

Code:L30415XN

ADVENTURE GUARANTEED

Among KERAM's features is a geometry designed for a more comfortable position than that of sportive-style bikes. The upright position gives great visibility and control, contributing to a safer feel on the bike. Riders of any age or experience level will quickly discover KERAM is fun and easy to ride. The advanced motor and electronics integration gives riders more freedom and range than ever before.

Technical Information

STANDARD COMPONENTS

WE SUGGEST THE COMPONENTS. YOU SELECT THEM

During the purchasing process, you can configure the components with the available options

  • FRAMEOrbea Keram 2019, Hydroformed Alloy 6061, Hide out battery technology, bottle cage and dual battery compatible and hidden kickstand compatible
  • FORKMarzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
  • CRANKSETPW EB04-NW32 G4
  • HEADSET
    Consult other components
  • HANDLEBAROC1 Flat 31.8mm 740mm
  • STEMAlloy 31.8mm interface 7º
  • SHIFTERSShimano Deore M6100
  • BRAKESShimano MT200 Hydraulic Disc
    Consult other components
  • CASSETTESun Race CSMZ80 11-51t 12-Speed Metalic E-bike
  • REAR DERAILLEURShimano XT M8100 SGS Shadow Plus
  • CHAINKMC e12 Turbo Silver
  • WHEELSMach1 Klixx 23c Tubeless Ready
  • TYRESMaxxis Ikon 2.20" FB 60 TPI Dual
  • SEATPOSTAlloy 31.6x400mm Offset 0
  • SADDLESelle Royal 2077 DRN
  • LOCKAbus battery down tube lock
  • QUICK STAND
    Consult other components
  • MOTORBOSCH Performance CX Cruise (25km/h) BDU450CX
  • BATTERYBOSCH Performance 500Wh
  • DUAL BATTERY
    Consult other components
  • DISPLAYBOSCH Performance Purion
  • CHARGERCompact Charger 2A (100-240V) Worldwide
    Consult other components

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Sizing Information

GEOMETRY AND ERGONOMICS

SIZES-27.5”M-29L-29”XL-29”
1 - SEAT TUBE (C-T)400405457515
2 - TOP TUBE (EFF)538569603638.4
3 - HEAD TUBE105114133158
4 - CHAINSTAY475
5 - BB HEIGHT307313313313
6 - BB DROP43636363
7 - WHEELBASE1112114911731210
8 - HEAD ANGLE67º67º68º68º
9 - SEAT ANGLE73º
10 - STANDOVER798825861893
11 - REACH355375402430
12 - STACK600636659752
13 - FORK LENGTH518530530530
RAKE42515151

SIZECRANKSTEMHANDLEBAR
S-27,517070740
M-2917070740
L-2917070740
XL-2917070740

*The handlebar size is centre-centre

HEIGHT ( CM )HEIGHT ( IN )SIZE
150-16559.1"-65.0"S-27.5”
165-17565.0"-68.9"M-29
175-18568.9"-72.8"L-29”
185-19572.8"-76.8"XL-29”

*Estimated measurements
