This sportive e-mountain bike hardtail features a 120 mm suspension fork and 29" wheels for a smooth and comfortable ride off-road.
This sportive e-mountain bike hardtail features a 120 mm suspension fork and 29" wheels for a smooth and comfortable ride off-road.
Bergamont

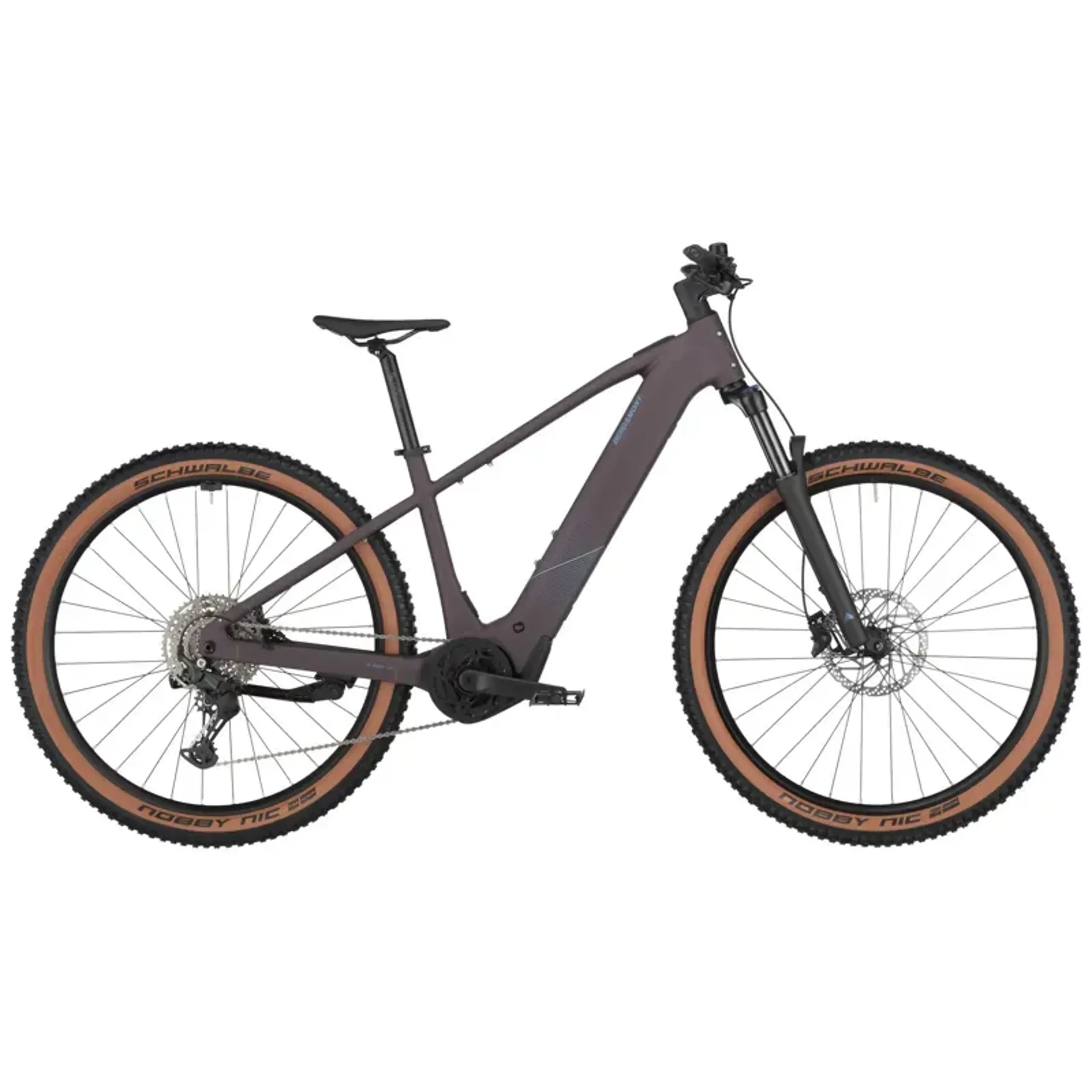

Bergamont E-Revox Sport 20 Wave E-BMTB in Dusky Purple

£3,599.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Bergamont E-Revox Sport 20 Wave E-BMTB in Dusky Purple

Season:2025

Brand:Bergamont

Code:423616duskyPUR

This sportive e-mountain bike hardtail features a 120 mm suspension fork and 29" wheels for a smooth and comfortable ride off-road.

The Bergamont E-Revox Sport brings everything you need for a great day out on the trails: the classic derailleur drivetrain for efficient pedaling and shifting is a lightweight and proven concept for fast off-roading and the hydraulic disc brakes offer superior braking power and modulation even in adverse weather conditions.

The Bosch Performance Line CX electric drive system offers powerful and long-lasting support, giving you the freedom to explore beyond your usual routes and to push your boundaries.
The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging, while the battery cover remains on the bike to protect the empty battery bay from the elements. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.

Features:

  • Super lightweight aluminum frame
  • Suntour suspension fork with 120 mm travel
  • Shimano Cues 1x10-speed drivetrain
  • Bosch Smart System with powerful Performance Line CX motor
  • Shimano hydraulic disc brakes
  • 29" Schwalbe Nobby Nic tires
Technical Information
  • Frame
    29", super lite AL-6061 tubing, PowerTube battery
  • Fork
    Suntour XCM34 DS LO, 120 mm, rebound adjust, 15x110 mm axle
  • Fork-Suspension-Travel
    120
  • Derailleur
    Shimano Cues, RD-U6000, Shadow Plus
  • Shift-Levers
    Shimano Cues, SL-U6000, 1x10-speed, rapidfire plus-shifter
  • Number-Of-Gears
    10
  • Brake-Front
    Shimano BR-MT410, hydraulic disc brake
  • Brake-Rear
    Shimano BR-MT410, hydraulic disc brake
  • Brake-Lever-Front
    Shimano BL-MT4100, hydraulic disc brake
  • Brake-Lever-Rear
    Shimano BL-MT4100, hydraulic disc brake
  • Brake-Disc-Front
    Shimano SM-RT30, 203 mm
  • Brake-Disc-Rear
    Shimano SM-RT30, 180 mm
  • Rims
    Cross X18, disc, eyelets, width: 30 mm
  • Tire-Front
    Schwalbe Nobby Nic, Performance, Addix, 65-622
  • Tire-Rear
    Schwalbe Nobby Nic, Performance, Addix, 65-622
  • Hub-Front
    Shimano HB-TC500-B, centerlock, disc, 15x110 mm axle
  • Hub-Rear
    Shimano FH-TC500, centerlock, disc, 12x148 mm axle
  • Spokes
    Stainless, black
  • Handlebar
    Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm
  • Handlebar-Width
    740
  • Stem
    Syncros AM 2.0, 0°
  • Stem-Length
    50
  • Stem-Angle
    0
  • Headset
    Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
  • Grips
    Syncros MTB Comfort, lock-on
  • Saddle
    Syncros Tofino 2.5
  • Seat-Post
    Syncros M3.0
  • Crankset
    FSA CK-220, 165 mm, 34t
  • Bottom-Bracket
    Bosch, Isis
  • Drive
    Shimano Linkglide, CN-LG500
  • Sprocket
    Shimano Cues, CS-LG400-10, 11-48t
  • Pedals
    MTB alloy
  • Motor
    Bosch Smart System, Performance Line CX (BDU384Y), 250 W, 36 V, max. 25 km/h
  • Battery
    Bosch PowerTube, 36 V Li Ion, 600 Wh
  • Battery-Capacity
    600
  • Number-Of-Batteries
    1
  • Display
    Bosch Purion 200
  • Charger
    Bosch Standard Charger, 4A
