This versatile e-mountain bike is fun to ride, based on a lightweight dual suspension frame with 150 mm of travel and 29" wheels.
This versatile e-mountain bike is fun to ride, based on a lightweight dual suspension frame with 150 mm of travel and 29" wheels.
Bergamont

Bergamont E-Revox FS 10 E-MTB in Silver

£6,399.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

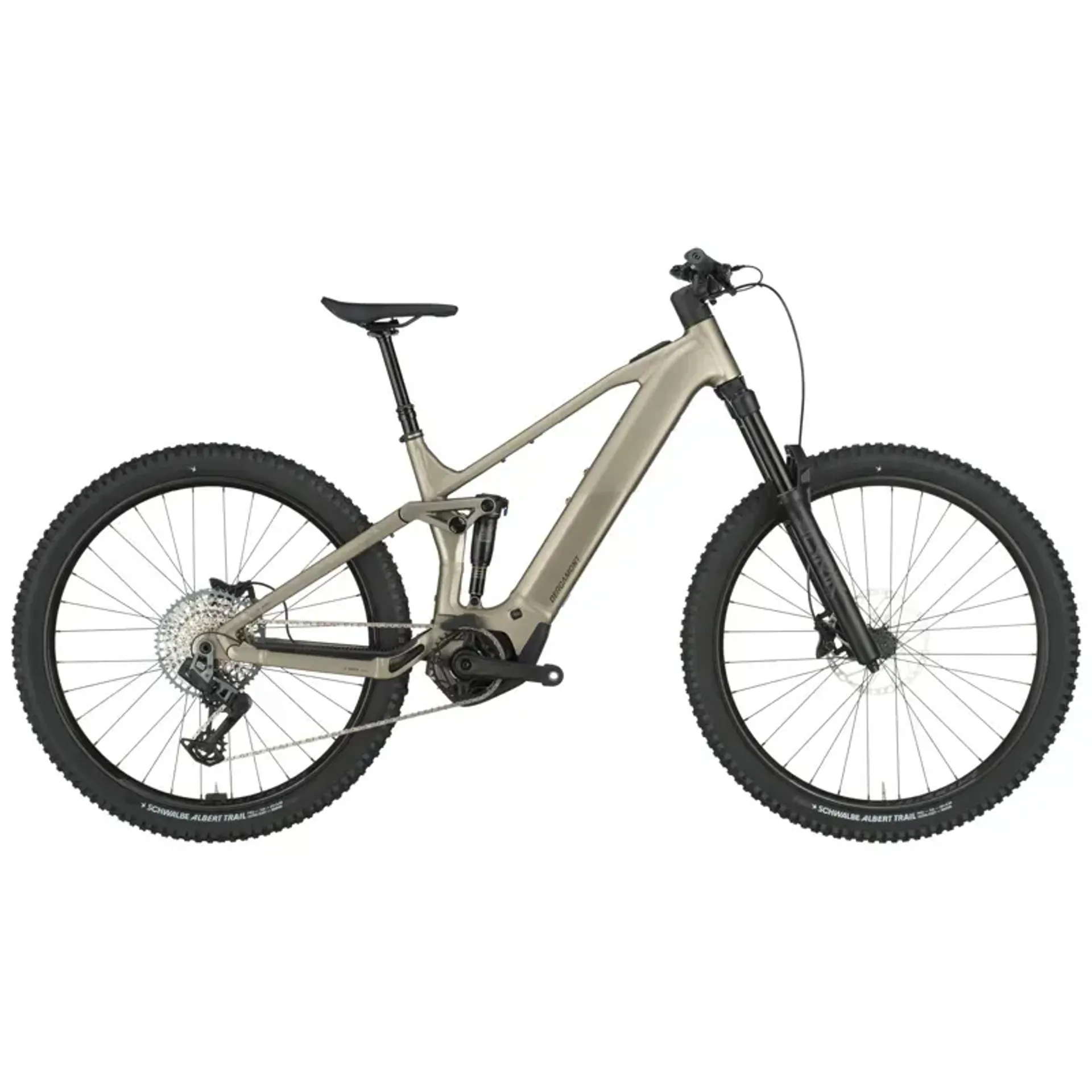

Bergamont E-Revox FS 10 E-MTB in Silver

Season:2025

Brand:Bergamont

Code:423609warmSIL

This versatile e-mountain bike is fun to ride, based on a lightweight dual suspension frame with 150 mm of travel and 29" wheels.

The plush suspension and large wheel diameters provide a smooth and comfortable ride, even when the terrain gets rough, and give you perfect control over your ride at any moment.

The Bosch Performance Line CX electric drive system offers powerful and long-lasting support, giving you the freedom to explore beyond your usual routes and to push your boundaries. A 12-speed drivetrain will ensure you remain in the optimal pedaling cadence on every leg of your trip. For clean optics and a sleek look, the E-Revox FS also features full cable integration.

The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.

Features:

  • Super lightweight aluminum frame with 150 mm travel
  • RockShox suspension fork with 150 mm travel
  • Sram GX Eagle AXS 1x12-speed drivetrain
  • Bosch Smart System with powerful Performance Line CX motor
  • Powerful Shimano hydraulic disc brakes
  • 29" Schwalbe Albert Trail Pro tires
Technical Information
  • Frame
    29", ultra lite AL-6061 tubing, PowerTube battery, 150 mm travel
  • Fork
    RockShox Lyric Select, 150 mm, 15x110 mm axle
  • Fork-Suspension-Travel
    150
  • Rear-Shock
    RockShox Deluxe Select+ RT, Trunnion, compression-, rebound. Adj., 150 mm
  • Rear-Shock-Suspension-Travel
    150
  • Derailleur
    Sram GX Eagle AXS, T-Type
  • Shift-Levers
    Sram AXS POD, 1x12-speed
  • Number-Of-Gears
    12
  • Brake-Front
    Shimano BR-MT420, hydraulic disc brake, 4-piston
  • Brake-Rear
    Shimano BR-MT420, hydraulic disc brake, 4-piston
  • Brake-Lever-Front
    Shimano BL-MT4100, hydraulic disc brake
  • Brake-Lever-Rear
    Shimano BL-MT4100, hydraulic disc brake
  • Brake-Disc-Front
    Shimano SM-RT64, 203 mm
  • Brake-Disc-Rear
    Shimano SM-RT64, 203 mm
  • Rims
    Syncros MD30, disc, eyelets, tubeless ready
  • Tire-Front
    Schwalbe Albert Trail Pro, TLR, Soft, 63-622
  • Tire-Rear
    Schwalbe Albert Trail Pro, TLR, Soft, 63-622
  • Hub-Front
    Formula CL-811, 15x110 mm axle
  • Hub-Rear
    Formula ECT-1481, centerlock, disc, 12x148 mm axle
  • Spokes
    Sapim Race, black
  • Handlebar
    Syncros Hixon 2.0, riserbar, rise: 12 mm, width: 760 mm
  • Handlebar-Width
    760
  • Handlebar-Rise
    8
  • Handlebar-Backsweep
    8
  • Stem
    Syncros AM 2.0, 0°
  • Stem-Length
    70
  • Stem-Angle
    6
  • Headset
    Acros, A-Headset, semi-integrated, tapered, blocklock, with integrated cable routing
  • Grips
    Syncros MTB Comfort, lock-on
  • Saddle
    Syncros Tofino E 2.0
  • Seat-Post
    Syncros Duncan, dropper post
  • Seat-Post-Dropper-Travel
    150
  • Crankset
    E-13, Helix Core, 165 mm, 34t
  • Bottom-Bracket
    Bosch, Isis
  • Drive
    Sram GX Eagle, Flat Top
  • Sprocket
    Sram GX Eagle T-Type, CS-1275, 10-52t
  • Pedals
    none
  • Motor
    Bosch Smart System, Performance Line CX (BDU384Y), 250 W, 36 V, max. 25 km/h
  • Battery
    Bosch PowerTube, 36 V Li Ion, 800 Wh
  • Battery-Capacity
    800
  • Number-Of-Batteries
    1
  • Display
    Bosch Mini Remote with TT System Controller
  • Charger
    Bosch Standard Charger, 4A
