Amflow PL Carbon Key Features:
  • Avinox Drive Unit 105Nm
  • Avinox Integrated Battery - 800Wh
  • Fox 36 Performance Suspension Fork - 160mm Travel
  • SRAM GX Eagle Drivetrain / DJI Avinox SL Crank
Amflow PL Carbon Key Features:
  • Avinox Drive Unit 105Nm
  • Avinox Integrated Battery - 800Wh
  • Fox 36 Performance Suspension Fork - 160mm Travel
  • SRAM GX Eagle Drivetrain / DJI Avinox SL Crank
Amflow

Amflow PL Carbon 800Wh 2025 Electric Mountain Bike - Silver

£5,999.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

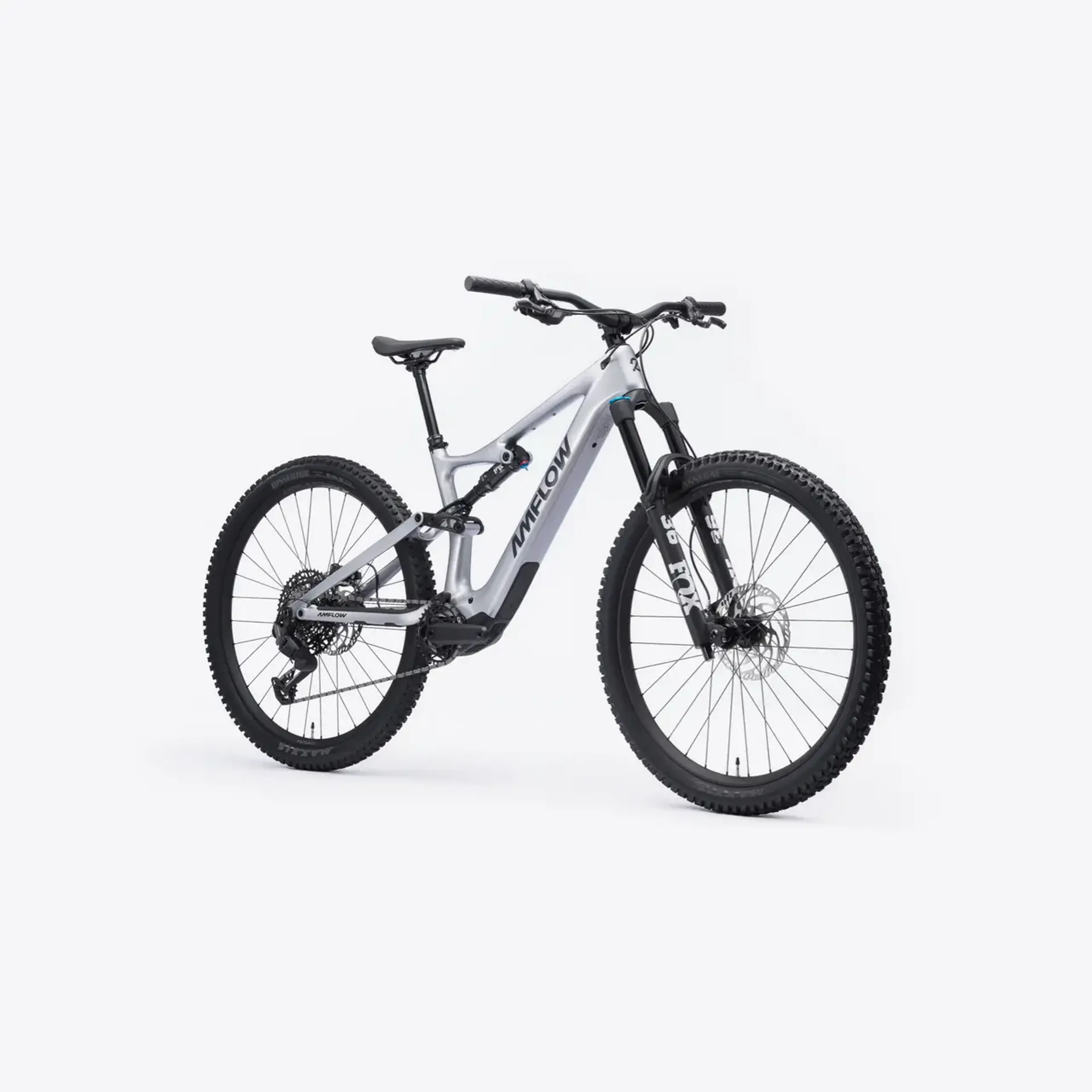

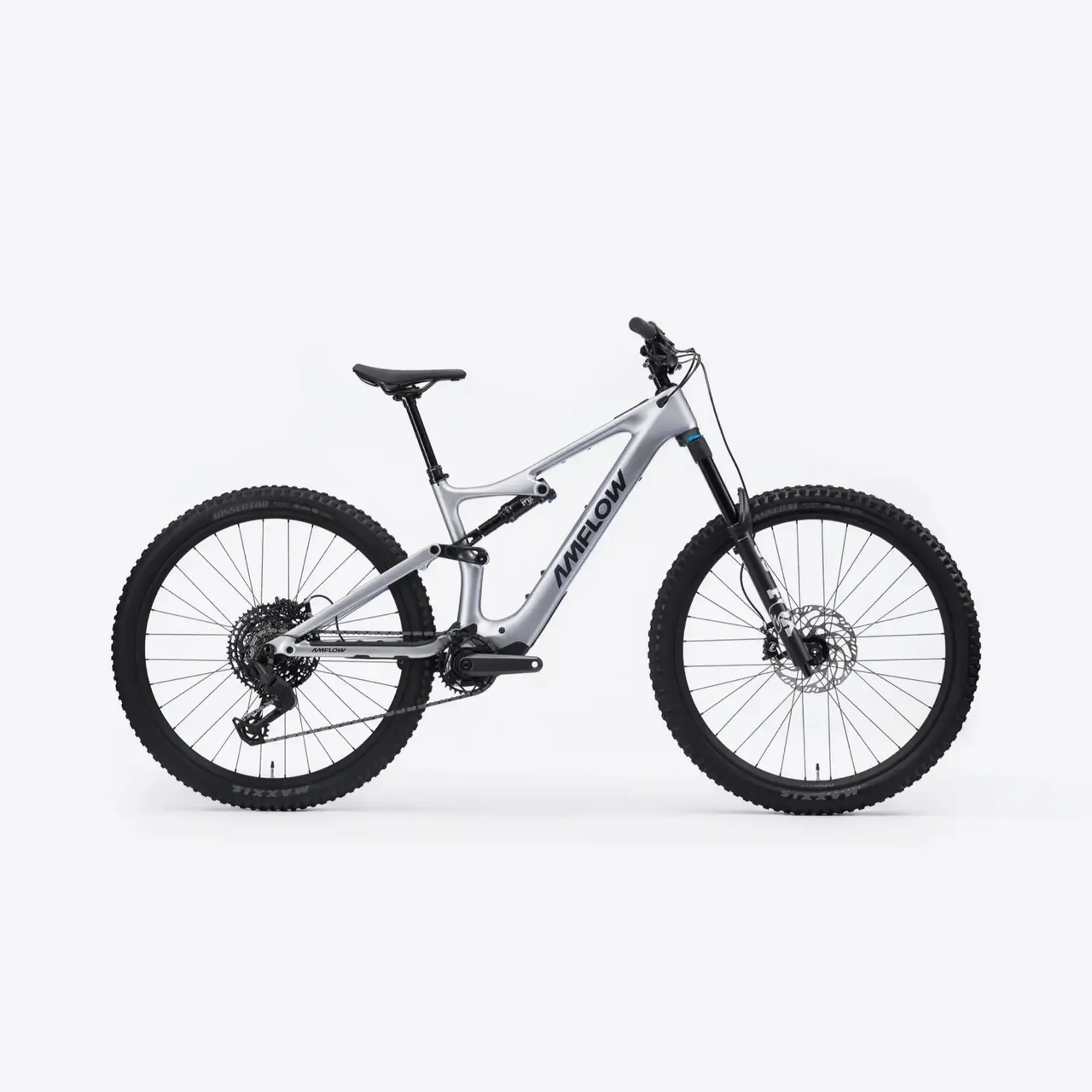

Amflow PL Carbon 800Wh 2025 Electric Mountain Bike - Silver

Season:2025

Brand:Amflow

Code:AMPLC800

Power to the Peak
The Amflow PL electric mountain bike offers 850 watts of peak power in an ultra-light build weighing 19.2 kg (600Wh version, in Medium). With its unrivalled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for trailblazers. A full-power eMTB with a stunningly lightweight body. Meticulously designed and crafted to deliver the ultimate ride.

Amflow PL's ultra-light carbon fibre frame weighs just 2.27 kg, for breathtaking speed and agility.

Amflow PL Carbon Key Features:
  • Avinox Drive Unit 105Nm
  • Avinox Integrated Battery - 800Wh
  • Fox 36 Performance Suspension Fork - 160mm Travel
  • SRAM GX Eagle Drivetrain / DJI Avinox SL Crank


Powerful Drive, Smooth Assistance
Designed and manufactured by DJI, the Avinox Drive System is seamlessly integrated into Amflow PL, infusing the type of cutting-edge hardware and software that has made DJI an industry leader in drones and camera stabilization technology. The Avinox Drive Unit features a compound planetary gear set with an industry-leading power-to-size ratio.

The durable, high-strength polymer material inside the Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced DJI algorithms, it provides strong, smooth assistance for a wide range of scenarios and conditions.

Five Modes, Targeted Assistance
In addition to traditional assistance modes of Eco, Trail and Turbo, the DJI Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. Once enabled, Auto mode empowers users to tackle a wide variety of terrain types and gradients without switching modes.

For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance.

Intelligent Walk Assist, Effortless Control
Amflow PL's Walk Mode features intelligent walk assistance for easy incline traversing, Auto Hold to prevent rollback on slopes, and Hill Start Assist for additional torque to get you started on inclines. It also allows stationary gear shifting for a smooth and intuitive experience.

High-Capacity Battery, Extended Range
The Avinox Drive System's battery weighs just 2.87 kg and features ultra-high energy density for extended range.

Intelligent Battery Health, Extended Service Life
Amflow PL features a battery health management system for real-time monitoring, self-discharge, active voltage reduction, and abnormality alerts. Batteries are durable and reliable. After 500 full charge-discharge cycles, the battery still maintains 80% of its initial capacity.

The palm-sized fast charger is capable of charging the battery from 0% to 75% in just 1.5 hours.

Advanced Four-Bar Linkage Design for Optimized Ride Efficiency
The advanced four-bar linkage structure of Amflow PL significantly reduces pedal kickback while greatly improving pedalling efficiency, ensuring that every stroke counts.

Superior Suspension
The rear shock, co-tuned with FOX, offers a sensitive initial stroke response to effectively filter out minor vibrations. It also provides powerful end-stroke support to prevent bottom-outs during continuous high-speed impacts or steep descents, so you can fully enjoy every off-road adventure.

Built-in Display, Smartphone Connectivity
The brain of the DJI Avinox Drive System is the Control Display. This 2-inch full-colour OLED touchscreen is integrated directly into the frame. It displays real-time ride data and estimated range and enables quick changes of the display content with a simple slide.

Anti-Theft Protection
Users can configure multiple anti-theft settings on the Avinox app, including password authentication and abnormal movement alerts. If the bike is moved, an alarm will sound, [10] and the Avinox app will send a push notification, making it convenient for users to check the bike's real-time location and status. Users can also activate a Phone Key to unlock the bike automatically according to proximity.

Dual Wireless Controllers, Essential Features at Your Fingertips
The Bluetooth-enabled Wireless Controllers connect to the Control Display, allowing convenient assist mode switches while riding.

Comprehensive Data Recording, Easy Metric Sharing
With the Control Display or the Avinox app, riders can review a rich array of data like speeds, range, cadence, power, torque, gradient, altitude, calories burned, ride times, heart rate, and more. This data can also be easily synced with Strava.
Technical Information
  • Frame
    • Amflow PL Carbon Frame
    • Satin Silver
    • 150mm rear travel
    • Compatible with 27.5" and 29" wheels
  • E-Bike System
    • Avinox M1 Drive Unit: 105 N·m
    • Avinox Screen: 2-inch OLED Control Display
    • Avinox Integrated Battery: 800Wh
    • Avinox Wireless Controllers: Right and left sides
    • Avinox Fast Charger: 12A/508W
  • Rear Shock
    • 2026 FOX Float Performance
    • Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever
  • Fork

    • 2026 FOX 36 Performance

    • 160mm travel, GRIP Damper, 15×110mm, 44mm rake

  • Transmission
    • Rear Derailleur:SRAM Eagle 70 Transmission Derailleur
    • Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
    • Shift Levers:SRAM Eagle 70 Transmission Shifter | Single Click
    • Cassette:SRAM XS-1270 Eagle Transmission 10-52T
    • Chain:SRAM Eagle 70 Transmission Flattop Chain
    • Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
  • Brakes
    • Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)
  • Wheels
    • Amflow HMA-30
    • Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
    • Spokes: SAPIM E-Light J-bend
    • Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
    • Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
  • Tires
    • Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
    • Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
  • Handlebar
    • Amflow Enduro Alloy Handlebar
    • 35mm rise, 800mm wide
    • 5-degree upsweep, 9-degree backsweep
  • Grips
    • Amflow Enduro Grips
  • Stem
    • Amflow Enduro Stem, One-piece CNC
    • Length: 35mm
    • Clamping diameter: 35mm
  • Saddle
    • Selle Royal SRX Plus
  • 31.6mm Seatpost
    • KS Rage-i
    • M: 150mm
    • L: 170mm
    • XL/XXL: 190mm
  • Accessories
    • Quick Start Guide
    • Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
    • Shock Pump
    • Front and Rear Lights
